Current location：Home > Products > Caster series

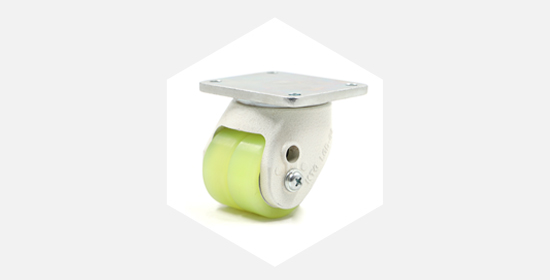

KT-AGV6 Precision Heavy Duty Caster Series KT-AGV6-60SF Urethane

Series：

Model： KT-AGV6-60SF KT-AGV6-75SF KT-AGV6-60TSF KT-AGV6-75TSF

texture of material： Urethane

Functional features

Model description

Texture of material

Specification parameters

Related downloads

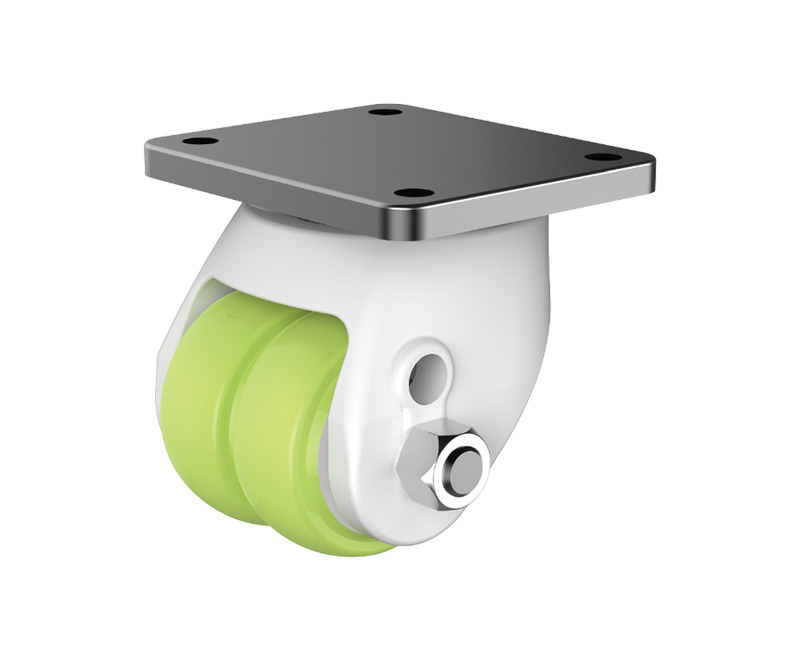

KT-AGV6 Precision Heavy Duty Caster Series

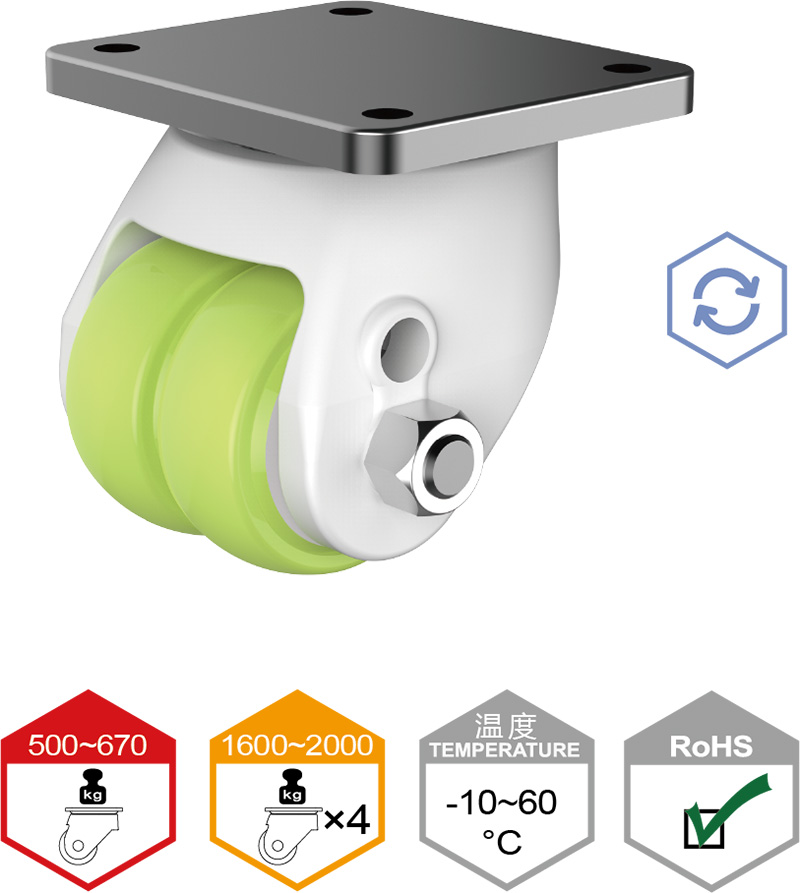

Product featuresFEATURES

-Two rows of thrust ball bearings are used to optimize the rotating structure, and the shell is made of die casting. Suitable for equipment with height limitation. AGV series products that run 24 hours a day.

Model descriptionORDERING CODE

KT - AGV6 - 60 - SF/TSF - U

KT	KT Caster
AGV6	Series
60	Serial number
SF/TSF	SF: Swivel Flange T: dual Wheel
U	U:Urethane

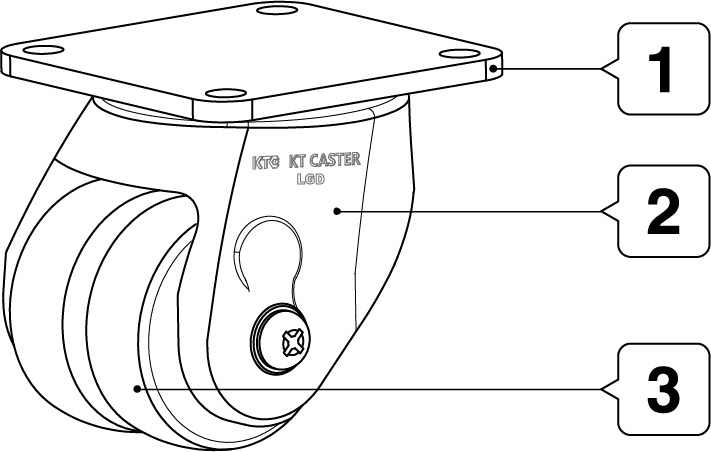

Texture of materialMATERIAL & TREATMENT INFORMATION

	Material	Treatment
1、Caster seat	S45C	Black Coated/Zn Galvanized
2、Body	ALDC12	Ivory/powder Coated
3、Ball bearing	STB2	-
4、Wheel	Antistatic poly Uerthane+AL+S45C	Ni-Cr/Ni/Zn/Black electrophoresis

SpecificationsDIMENSION

Unit:mm

MODEL	NET WEIGHT
MODEL	KG	1EA	4EA	W	?
KT-AGV6-60SF	1.45	540	1600	55	?60
KT-AGV6-75SF	1.50	670	2000	55	?75
KT-AGV6-60TSF	1.45	540	1600	23×2	?60
KT-AGV6-75TSF	1.90	670	2000	23×2	?75

Unit:mm

MODEL
MODEL	FxF0	F1XF2	HOLE
KT-AGV6-60SF	100×85	80×60	?9
KT-AGV6-75SF	100x85	80x60	?9
KT-AGV6-60TSF	100×85	80x60	?9
KT-AGV6-75TSF	100×85	80×60	?9

Unit:mm

MODEL
MODEL	R	H	O
KT-AGV6-60SF	55	100	25
KT-AGV6-75SF	62.5	110.5	25
KT-AGV6-60TSF	55	108	25
KT-AGV6-75TSF	62.5	110.5	25
